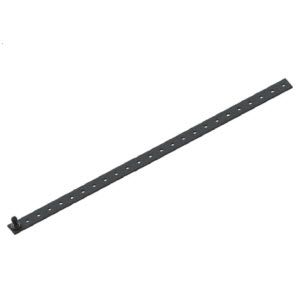

Elastomer Straps are flexible and can wrap bundles up to 4.33" in diameter. To bundle, the pre-installed latch pin is inserted into one of the mounting holes located along the strap. Releasable design allows for frequent moves, adds and changes.
Unit of Measure

Specifications

Overall Length

 N/A 11.81 in300 mm

Material Thickness (Decimal)

 N/A 0.070 in1.8 mm

Maximum Bundle Size

 N/A 4.33 in110 mm

Hole Center to Center

 N/A 0.47 in12 mm

Material

Material

 N/A Strap - Silicone Rubber, 50 Shore A, RMS-417
Latch Pin - UL94 HB Nylon 6/6, RMS-148

Features and Benefits

Features and Benefits

 N/A
  • Rubber cinches the cable bundle, preventing lateral movement along the bundle
  • No sharp edges to damage cables
  • Can be wrapped up to three times for tighter grip
