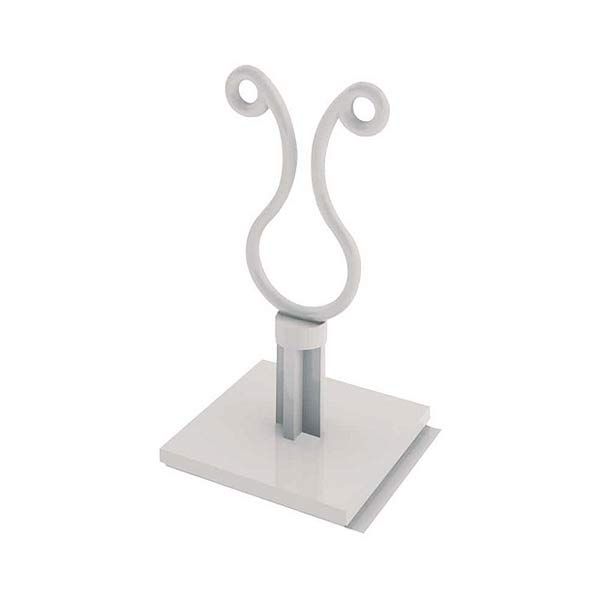

Standoff Twist Tie - Adhesive Mounts are made of nylon and are natural in color. The clamps will bundle wire or cable diameters starting at 0.300 up to 0.500. The standoff lengths are available starting at 0.250 up to 1.00. This clamp comes featuring the adhesive base that eliminates the need for a predrilled hole and works on most surfaces.
Unit of Measure

Specifications

Material

 N/A Nylon 6/6

Style

 N/A Twist Type

Color

 N/A Natural
Flammability Rating1 N/A 94V-0 94V-2

Overall Height C

 N/A 1-23/32 in43.70 mm

Decimal Equivalent Overall Height C

 N/A 1.718 in

Minimum Bundle Diameter

 N/A 0.500 mm

Maximum Bundle Diameter B

 N/A 12.70 in0.400 mm

Minimum Bundle Diameter B

 N/A 10.20 in

Standoff Height A

 N/A 1/2 in12.70 mm

Decimal Equivalent Standoff Height A

 N/A 0.500 in

Adhesive Material

 N/A RMS-15

Features and Benefits

Features and Benefits

 N/A Standoff Twist Tie - Adhesive Mounts will allow you to bundle your wire or cables. The twist feature allows you to easily open and add or remove wires or cables as required in your application. The twist lock style with the adhesive base allows you to bundle your wire or cable and quickly adhere it to your application with this one part.

Materials: Nylon 6/6, RMS-01 is the standard. Flame Retardant Nylon, RMS-19 available by special order.

Colors: Natural is standard. Black and other colors available, minimums may apply. Please contact your EFC International Representative for further information.
  • 1 by special order
