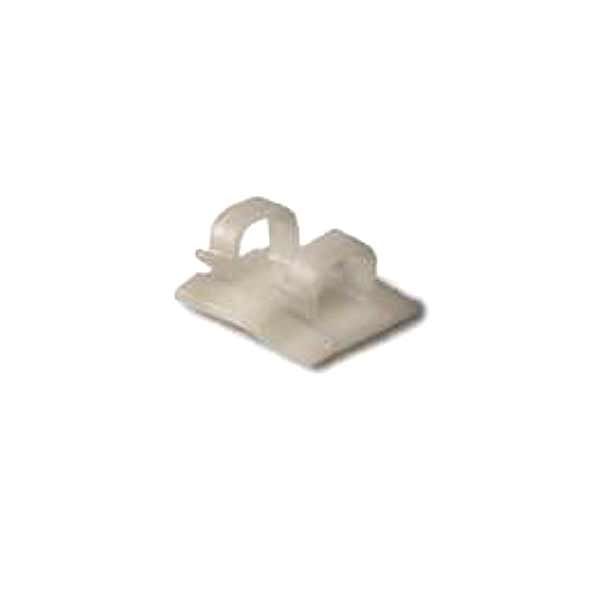

Adhesive backed cord clips enable easy access for routing modifications. They hold cords or cables firmly in place and can be used for many applications. Two retaining arms with curved contour safely positions larger cords, cables or wire bundles. Mounting time is reduced with a two-piece per adhesive strip system. The 1/32" thick adhesive strip holds the retaining platform in place.
Unit of Measure
Specifications
Material |
N/A Nylon 6/6 (UL 94V-2) |
Color |
N/A Black Natural |
Temperature Index |
N/A -40 to 185 ºF-40 to 85 ºC |
Flammability Rating |
N/A 94V-2 |

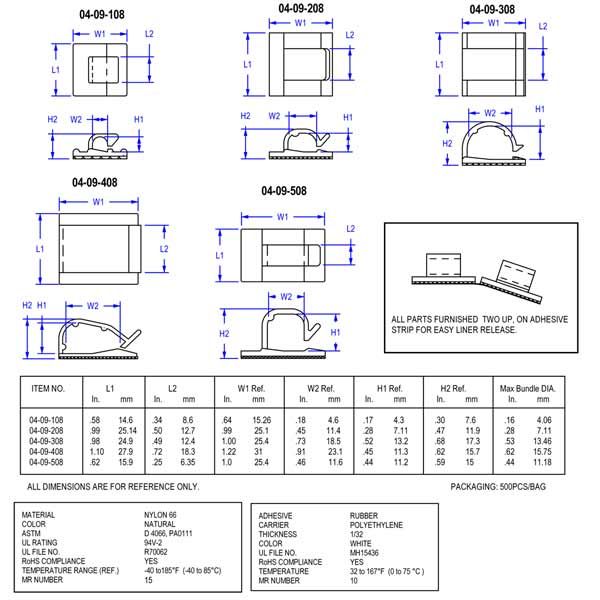

Reference H |
N/A 0.44 in11.2 mm |
Reference H2 |
N/A 0.59 in15 mm |
Reference L1 |
N/A 0.62 in15.9 mm |
Reference L2 |
N/A 0.25 in6.35 mm |
Maximum Bundle Diameter (Decimal) |
N/A 0.44 in11.18 mm |
Reference W1 |
N/A 1.00 in25.4 mm |
Reference W2 |
N/A 0.46 in11.6 mm |
Underwriters Laboratories (UL) File Number |
N/A E70062 |
MR Number |
N/A 15 |
Adhesive Material |
N/A Rubber Based (Acrylic Available) |
Carrier Material |
N/A Polyethylene |
Adhesive Thickness |
N/A 1/32 in |
Color (Adhesive) |
N/A White |
Underwriters Laboratories (UL) File Number (Adhesive) |
N/A MH15436 |
Temperature (Adhesive) |
N/A 32 to 167 ºF0 to 75 ºC |
MR Number (Adhesive) |
N/A 10 |
Quantity |
N/A 500 |
Package Type |
N/A Bag |
Industry Standards/Certifications |
N/A Restriction of Hazardous Substances (RoHS) |
